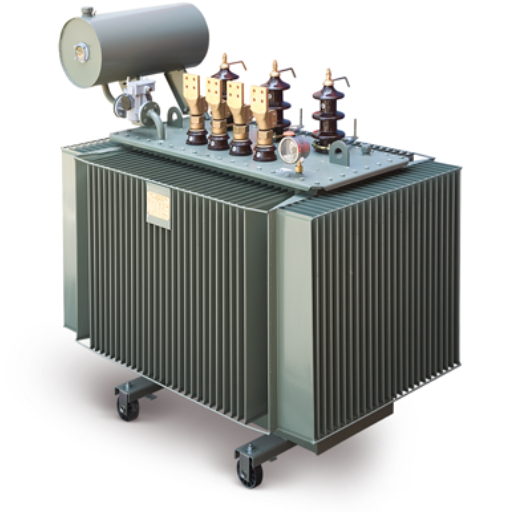

The Core of Oil Filled Transformer Technology
Oil Filled Transformer Technology is defined by the containment of the transformer’s core and coils within a robust tank filled with an insulating fluid. This fluid, Mineral Oil & Natural Ester, serves two critical functions: acting as a dielectric insulator to prevent electrical discharge between energized parts, and providing a highly efficient medium for cooling. Oil Immersed Transformers utilize this technology to manage the immense heat generated by power losses in the windings and core during operation. The heated fluid rises, transfers heat to the tank walls, and then cools as it circulates, ensuring the transformer maintains a safe operating temperature. The longevity and reliability of the entire electrical grid depend on the stability of this contained, oil-filled transformer Technology, which remains the dominant method for medium- and high-voltage power distribution.
Oil Immersed Transformers: Technology, Application, and Care
Oil Transformer Cooling Systems
- Natural Circulation (ONAN): Most units rely on the natural convection of oil to transfer heat to the tank walls for passive cooling.
- Forced Cooling (OFAF): Larger transformers use external pumps and radiators to circulate and cool the oil actively.
Applications & Voltage Ratings
- Broad Versatility: Essential across the entire power grid, from local distribution networks to large transmission substations.
- Wide Voltage Range: Used in low-to-medium distribution (e.g., < 36 kV) and high-power transmission applications (up to 500 kV+).
Oil Transformer Maintenance & Safety
- Routine Maintenance: Requires regular fluid testing (DGA, Dielectric Strength) to monitor insulation health and detect internal faults early.
- Safety Focus: Especially with mineral oil, alongside proper inspection of pressure relief valves and fire suppression systems.

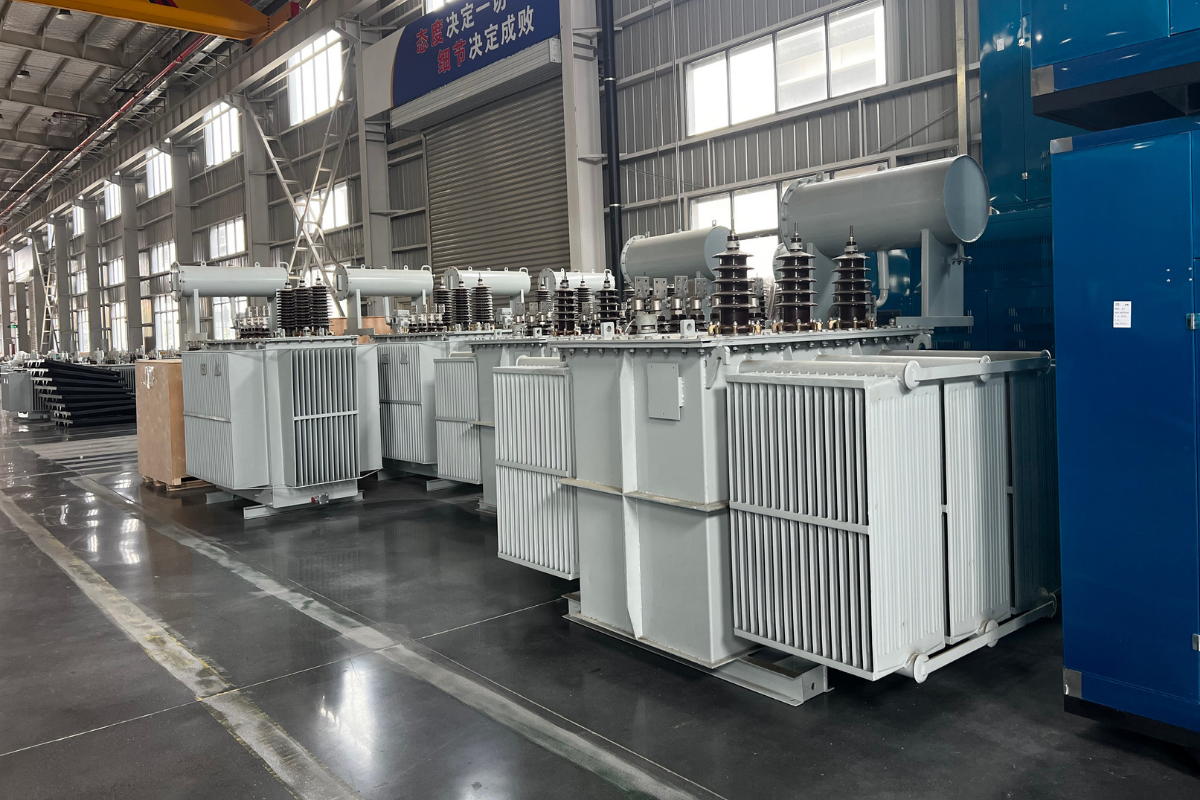

Types of Oil Immersed Transformers We Manufacture
Oil Immersed Power Transformer
Oil immersed power transformers are designed for high-capacity voltage transformation in utility substations and industrial facilities. These heavy-duty units efficiently step up or step down voltage levels, ensuring stable energy transmission across long distances or between grids. With advanced cooling systems and robust insulation, oil immersed power transformers deliver excellent reliability under continuous heavy loads, making them essential for primary power infrastructure and large-scale energy projects.
Oil Distribution Transformers
Engineered to supply reliable electrical power to residential, commercial, and light industrial areas, oil distribution transformers are the backbone of local energy networks. Compact yet durable, they deliver consistent voltage to end users while maintaining efficiency and safety in outdoor or pole-mounted installations. These transformers feature advanced insulation, efficient cooling with high-quality oil, and are built to withstand ambient temperature fluctuations, ensuring dependable performance at secondary substations.
Hermetically Sealed Oil Transformers
Hermetically sealed oil transformers are specifically designed to prevent air and moisture from coming into contact with the insulating oil, extending both oil and transformer life. Their fully sealed construction eliminates the need for regular oil maintenance and reduces the risk of oxidation, making them ideal for environments with high humidity or contamination. Compact, leak-proof, and highly reliable, these transformers offer cost-effective, long-lasting solutions for applications demanding minimal maintenance and maximum operational safety.
Technical Specifications & Standards
| Specification | Standard Range & Options |
|---|---|
| Power Rating (kVA/MVA) | 50 kVA up to 500 MVA (Covers distribution to transmission) |
| Primary Voltage | Up to 150 kV (Covers all typical utility applications) |
| Secondary Voltage | Low voltage (e.g., 208V, 480V, 600V) and Medium voltage options |
| Frequency | 50 Hz, 60 Hz, or dual-frequency capability |
| Winding Material | Copper or Aluminum |
| Cooling Class | ONAN, ONAF, OFAF (Natural or Forced Oil/Air) |
| Insulation Fluid Type | Mineral Oil, Natural Ester, or Synthetic Ester |
| Standards Compliance | IEC, ANSI/IEEE, CSA, and specific regional standards |
| Environmental Protection | Tank construction rated for NEMA 3R (Outdoor) or specific IP ratings |
Advantages of Oil Immersed Transformers
Optimal Cooling
Advanced oil cooling ensures stable temperatures and supports higher loads.
Reliable Insulation
Quality oil and materials provide strong dielectric protection and prevent electrical faults.
Robust Construction
Heavy-duty steel tanks safeguard components from environmental hazards.
Overload Tolerance
Designed for safe operation during temporary spikes in load without performance loss.
Low Maintenance
Sealed systems with quality components reduce maintenance needs and service interruptions.
Flexible Options
Available in various configurations to fit diverse installation requirements and standards.
Oil Immersed Transformers Applications & Industries
Power Utilities
Essential for substations and power distribution networks, ensuring stable energy transmission and distribution.
Renewable Energy
Used in solar farms and wind turbine installations to step up voltage for efficient grid integration.
Commercial Buildings
Supporting the electrical infrastructure of large commercial centers, hospitals, and data centers.
What Our Clients Say
“These oil-immersed transformers have been the backbone of our substation upgrades. We have seen a marked improvement in reliability and reduced downtime since installation.”
John
Utility Operations Manager
“The technical support and custom engineering we received allowed us to integrate the transformers seamlessly into our renewable energy project. Highly recommended for any mission-critical infrastructure.”
Priya
Renewable Energy Project Lead
Latest Insights
An indoor dry transformer is the safest, most code-compliant choice for bringing medium-voltage power into occupied buildings because it uses…
Dry type transformer maintenance includes regular visual inspections, scheduled electrical testing, proper cleaning, temperature monitoring, and systematic record keeping. Performed…
Dry type transformer installation requires proper foundation preparation, adequate clearances per IEC or NEC standards, correct lifting and handling, secure…
Transformer noise above 45 dB in patient care areas correlates with measurable increases in patient stress, longer recovery times, and…
Frequently Asked Questions (FAQs)
Oil Immersed Transformers are power transformers that use mineral oil or other dielectric fluids for cooling and insulation. The transformer’s core and windings are submerged in a tank filled with this oil. The oil absorbs heat generated by the windings during operation and circulates it to the tank walls or radiators for dissipation, while also providing electrical insulation to prevent short circuits.
The main advantages of Oil Immersed Transformers include superior cooling capabilities, which allow for higher voltage ratings and larger power capacities. They generally have a longer lifespan, better overload capacity, and are more cost-effective for outdoor and high-voltage applications. The sealed tank design also protects internal components from environmental contaminants like dust and moisture.
While Oil Immersed Transformers are primarily designed for outdoor installations due to the flammability risk associated with mineral oil, they can be used indoors if specific safety measures are met. These measures typically include fire suppression systems, oil containment basins, and adherence to strict building codes. For strict indoor safety requirements, alternative fluids with higher flash points (like silicone or ester oils) are often recommended.
The most common fluid is mineral oil, a petroleum-based product known for its excellent cooling and insulating properties. However, environmentally friendly alternatives like natural ester fluids (vegetable-based) and synthetic esters are gaining popularity. These alternatives offer higher flash points for improved fire safety and are biodegradable, making them safer for environmentally sensitive areas.
Selecting the correct rating involves calculating your current and future load requirements. You must consider the total kVA (kilovolt-ampere) demand of your connected equipment, the primary and secondary voltage levels, and any specific environmental conditions (such as high altitude or extreme temperatures). Consulting with an electrical engineer or our technical team is recommended to ensure you select a unit with adequate capacity and efficiency.
Yes, Oil Immersed Transformers are highly customizable. We can tailor the design to meet specific impedance requirements, voltage ratios, vector groups, and termination arrangements. We can also provide units designed for special environmental conditions, such as corrosive atmospheres or seismic zones.
-
