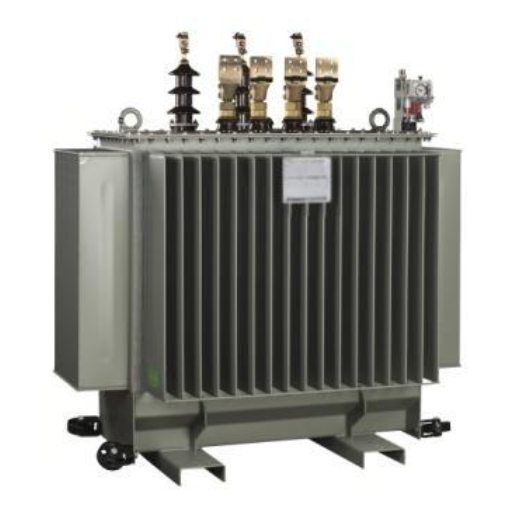

What is an oil distribution transformer?
Oil distribution transformers are the industry standard for efficiency and longevity. Unlike dry-type alternatives, these units utilize insulating oil to cool the core and coil assembly. This superior thermal management allows for higher load capacities, better overload handling, and a more compact footprint. Whether you are managing a municipal utility grid or powering a heavy industrial facility, our oil-immersed units are engineered to minimize losses and maximize uptime.
Key Features & Benefits of Our Oil Distribution Transformers
Superior Thermal Management
The liquid insulation provides excellent heat dissipation, keeping internal components at optimal operating temperatures. This results in higher efficiency and the ability to handle temporary overloads without damage.
Enhanced Dielectric Strength
Insulating oil offers higher dielectric strength than air, allowing for a more compact design without compromising safety or voltage capacity. This makes our transformers ideal for space-constrained installations.
Rugged Durability Noise Reduction
Sealed in hermetically designed tanks, internal components are protected from moisture, dust, and corrosive elements. The liquid immersion naturally dampens sound, making these transformers quieter than many air-cooled counterparts.
Data Specification Table for Oil Distribution Transformers
| Specification | Details |
|---|---|
| Power Rating | 50 kVA up to 5,000 kVA (5 MVA) |
| Primary Voltage | Up to 36 kV |
| Secondary Voltage | 120V – 600V (Custom voltages available) |
| Cooling Type | ONAN (Oil Natural Air Natural) / ONAF (Oil Natural Air Forced) |
| Insulating Fluid | Mineral Oil, Natural Ester, Synthetic Ester |
| Tapping Range | ± 2 x 2.5% (Off-circuit or On-load tap changers) |
| Standards | IEC 60076, ANSI/IEEE C57.12 |
| Mounting | Pad-Mount, Pole-Mount, Substation |
Why Choose Our Oil Distribution Transformers?
Proven Customer Satisfaction
Trusted feedback highlights our transformers’ consistent voltage delivery, low operating noise, and safety standards—ensuring your operations run smoothly and securely.
Comprehensive Customization
From voltage class and power rating to insulation type and protective accessories, we tailor every transformer to your exact requirements.
Stringent Quality Controls
All products undergo rigorous testing, including impulse, short-circuit, and full-load runs, in ISO-certified facilities.
Unmatched Lifecycle Value
Premium core materials and advanced insulation systems contribute to a longer operational life and reduced replacement costs.
Sustainable & Safe
Eco-friendly fluids and energy-efficient engineering help you meet sustainability targets and safety standards in any environment.
Dedicated Support
We provide seamless end-to-end service, including site surveys, installation, start-up assistance, and a global logistics network for timely delivery.
Industry Applications of Oil Distribution Transformers

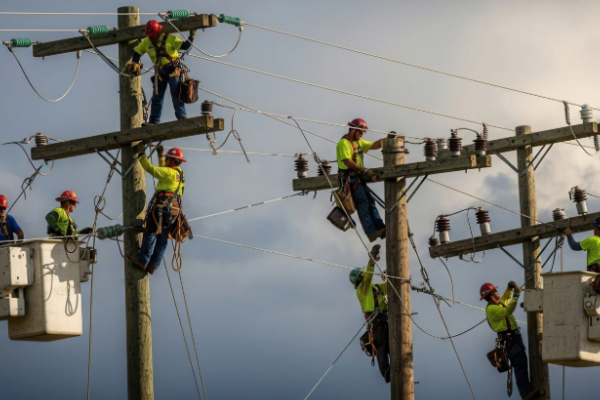

Electric Utilities & Power Grids
Oil Distribution Transformers form the crucial final stage of the electrical network, serving the core utility function of stepping down medium voltage power from primary feeders to the lower secondary voltages required by all end-users. Their robust design makes them indispensable for reliable power delivery in both overhead (Pole Mount) and underground (Pad Mount) configurations throughout suburban and rural service areas.

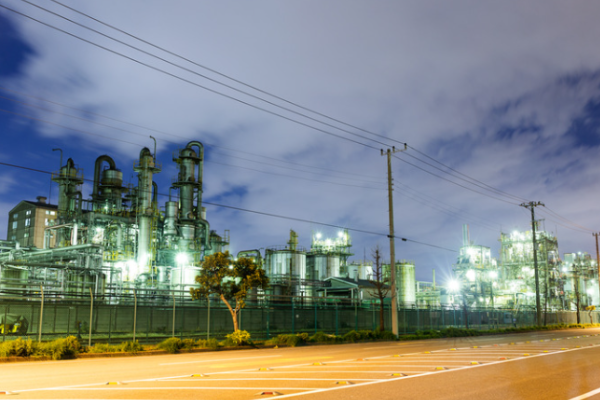

Commercial & Industrial Complexes
These transformers are routinely installed on-site at manufacturing facilities, large warehouses, and commercial parks. They accept the utility’s high-voltage service and efficiently convert it to the operational voltages needed by the complex’s machinery and lighting systems, offering a dedicated, secure, and easily maintainable point of power distribution within private facility grounds.
Renewable Energy Integration
Oil Distribution Transformers are vital components in tying decentralized power generation, such as small to medium-scale solar and wind farms, into the utility network. They are essential for precisely stepping up the electricity generated locally to meet the required grid voltage, effectively managing bi-directional power flow, and ensuring the stable synchronization of renewable power with the overall distribution system.
What Our Clients Say
“After switching to your oil distribution transformers, we noticed a dramatic reduction in energy losses and maintenance downtime. The units performed flawlessly even under heavy load and adverse weather, providing excellent reliability for our network. ”
James
Utility Operations Manager
“Your transformers delivered consistent voltage, lower operating noise, and outstanding safety features that gave us confidence in our industrial plant’s daily operations. We highly recommend your products for demanding environments.”
Priya
Engineering Supervisor
Latest Insights
An indoor dry transformer is the safest, most code-compliant choice for bringing medium-voltage power into occupied buildings because it uses…
Dry type transformer maintenance includes regular visual inspections, scheduled electrical testing, proper cleaning, temperature monitoring, and systematic record keeping. Performed…
Dry type transformer installation requires proper foundation preparation, adequate clearances per IEC or NEC standards, correct lifting and handling, secure…
Transformer noise above 45 dB in patient care areas correlates with measurable increases in patient stress, longer recovery times, and…
Frequently Asked Questions (FAQs)
Yes. Modern oil distribution transformers are designed with multiple safety features. Pad-mounted units feature tamper-resistant, secure enclosures to prevent unauthorized access. They are also equipped with pressure relief devices and advanced fusing to protect against internal faults, ensuring safe operation in populated areas.
These transformers are designed for low maintenance. Routine checks typically involve visual inspections for leaks, monitoring oil levels and temperature gauges, and ensuring the surrounding area is clear of debris for proper ventilation. Periodic oil testing may be recommended to check its dielectric strength and moisture content.
Traditionally, mineral oil has been the standard for its excellent dielectric and cooling properties. However, there is a growing demand for eco-friendly alternatives like natural esters (derived from vegetable oils) and synthetic esters, which offer higher fire safety points and are biodegradable.
Selecting the correct transformer involves calculating the total electrical load it will serve, considering both current and future demand. You must also factor in the installation environment (e.g., pole-mounted for overhead lines or pad-mounted for underground systems). Consulting with an electrical engineer is the best way to ensure proper sizing and specification.
The key advantages of oil distribution transformers include superior cooling efficiency, which allows them to handle higher loads and temporary overloads without damage. They also offer a more compact design for their power rating and typically have a longer operational lifespan due to the protective qualities of the insulating oil.
They are extremely versatile and are found in nearly every part of the electrical grid. Common applications include utility power distribution for residential neighborhoods, powering commercial buildings and shopping centers, supporting heavy machinery in industrial plants, and connecting renewable energy sources like solar farms to the grid.
-
