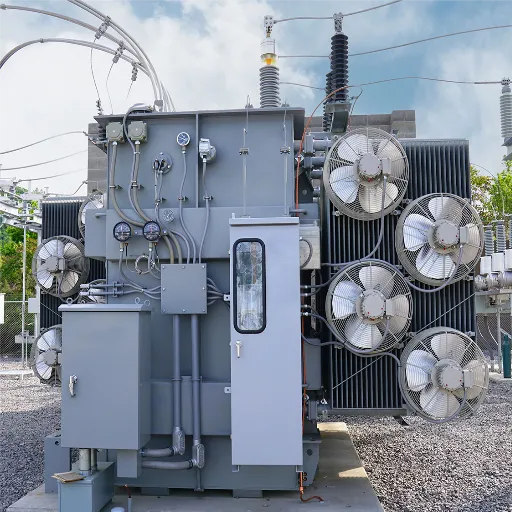

What is a Substation Transformer?
A substation transformer changes voltage to match transmission and distribution requirements, operating as step-down or step-up depending on grid position. In a transmission context, the substation transformer may operate as a step-down transformer, reducing high-voltage levels, such as hundreds of kV, to distribution voltage for the distribution network. In generation tie or grid-intertie scenarios, it may be a step-up transformer elevating voltage to transmission levels. As a core component of substation equipment, the substation transformer coordinates with protection and control equipment to maintain stability, regulate power supply, and ensure safe operation within the broader power system.
Maintenance and Care for Substation Transformers & Equipment
Routine Inspections
Scheduled inspections are essential for identifying early signs of wear, insulation degradation, and potential risks, minimizing downtime and supporting prolonged operational reliability.
Proactive Maintenance
Scheduled preventive maintenance, including electrical testing and oil analysis, ensures optimal transformer performance, reduces the likelihood of failure, and supports compliance with industry reliability standards.
Condition Assessment
Comprehensive condition assessments enable targeted interventions. Utilizing advanced monitoring technologies helps detect deterioration, facilitating timely repairs to maintain operational integrity and asset longevity.
Types of Substation Transformers & Equipment We Manufacture
Compact Substation
Designed for space-limited installations, compact substations provide integrated, efficient solutions for safe power distribution in urban or industrial environments.
Substation Container
Engineered for rapid deployment, substation containers offer modular, transportable systems with robust protection and full integration of critical substation components.
Technical Specifications & Standards
| Specification | Value/Range | Description |
|---|---|---|
| Rated Power | 1 MVA – 100 MVA | Supports diverse grid capacities and operational demands |
| Voltage Class | Up to 245 kV | Accommodates transmission and distribution applications |
| Frequency | 50 Hz / 60 Hz | Designed for global compatibility |
| Cooling Method | ONAN, ONAF, OFAF, OFWF | Efficient thermal management for reliable operation |
| Insulation Class | Class A, B, F | Enhanced dielectric strength and thermal endurance |
| Tap Changer | Off-load/On-load | Flexible voltage regulation under varying load conditions |
| BIL (Basic Impulse Level) | Up to 1050 kV | Provides robust protection against transient overvoltages |
| Standards Compliance | IEC, ANSI, GB | Meets international and regional quality benchmarks |
Advantages of Substation Transformers & Equipment
Superior Reliability
Engineered for consistent, long-term performance, our transformers and equipment minimize operational disruptions and support critical infrastructure uptime across a range of environments and grid configurations.
High Efficiency
Optimized core and winding designs enable outstanding energy efficiency, resulting in reduced losses and lower total operating costs throughout the equipment’s service life.
Robust Safety Features
Incorporating advanced protection systems, our products ensure personnel and asset safety while adhering to stringent international standards for electrical installations.
Flexible Customization
We offer a wide array of customizable specifications to address diverse application needs, including voltage ratings, cooling methods, and compact or modular configurations.
Simplified Maintenance
Designed with maintenance in mind, these solutions feature easy-access components and compatibility with advanced diagnostic tools for streamlined servicing and condition monitoring.
Eco Compliance
Our transformers and equipment are manufactured with eco-friendly materials and technologies, ensuring compliance with global environmental regulations and reducing overall ecological impact.
Substation Transformers & Equipment Applications & Industries

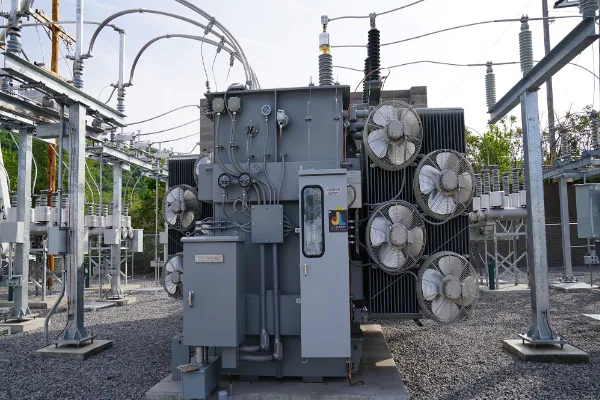

Utility Power Grids
Deployed in national and regional grid infrastructures to ensure secure, continuous electricity transmission and distribution for residential, commercial, and industrial consumers.

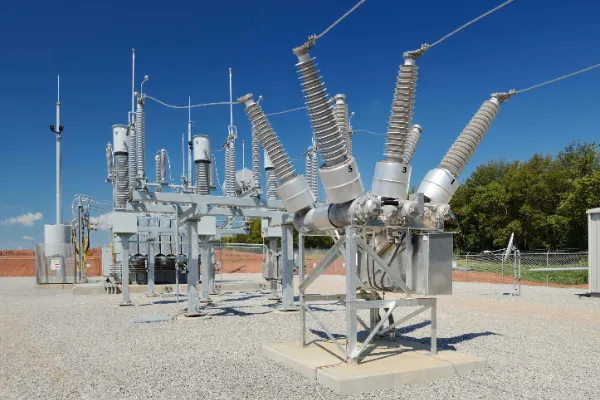

Renewable Integration
Enable efficient voltage regulation and grid interconnection for wind, solar, and other renewable energy facilities, supporting stable and scalable power generation.

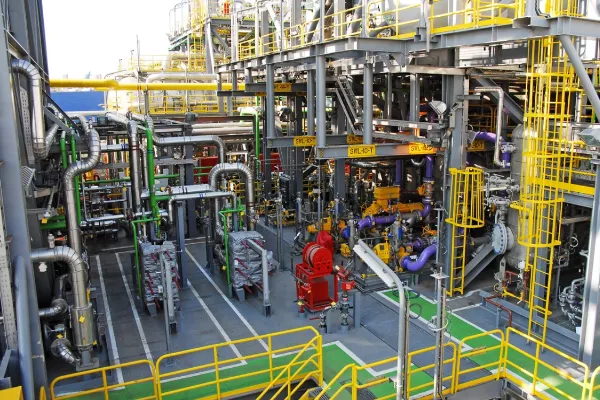

Industrial Facilities
Designed for manufacturing plants and large industrial sites requiring dedicated, high-capacity power solutions with enhanced protection and operational reliability.
What Our Clients Say
“The performance and reliability of these substation transformers have consistently exceeded our operational requirements, ensuring stable power delivery across our entire grid.”
Michael Turner
Grid Operations Manager
“Partnering with this team has elevated our infrastructure projects. Their technical expertise and prompt support have been invaluable throughout each deployment phase.”
Sophia Reed
Senior Project Engineer
Latest Insights
An indoor dry transformer is the safest, most code-compliant choice for bringing medium-voltage power into occupied buildings because it uses…
Dry type transformer maintenance includes regular visual inspections, scheduled electrical testing, proper cleaning, temperature monitoring, and systematic record keeping. Performed…
Dry type transformer installation requires proper foundation preparation, adequate clearances per IEC or NEC standards, correct lifting and handling, secure…
Transformer noise above 45 dB in patient care areas correlates with measurable increases in patient stress, longer recovery times, and…
Frequently Asked Questions (FAQs)
With proper maintenance, substation transformers typically achieve a service lifespan of 25 to 40 years, depending on operating conditions and environmental factors.
Selection depends on power load requirements, voltage class, site conditions, and grid integration needs. Our engineering team provides expert support for detailed sizing and configuration.
Routine inspections, preventive maintenance (such as oil analysis and electrical testing), and periodic condition assessments help ensure optimal reliability and performance.
Yes, we offer extensive customization, including voltage, capacity, cooling method, and modular design options to meet unique operational requirements.
We utilize ONAN, ONAF, OFAF, and OFWF cooling systems, each selected to deliver efficient heat dissipation and ensure long-term operational stability.
All equipment is manufactured in accordance with IEC, ANSI, and GB standards, ensuring compatibility and regulatory compliance for global applications.
-
Manufacturing & Industrial
-
Industries We Serve
-

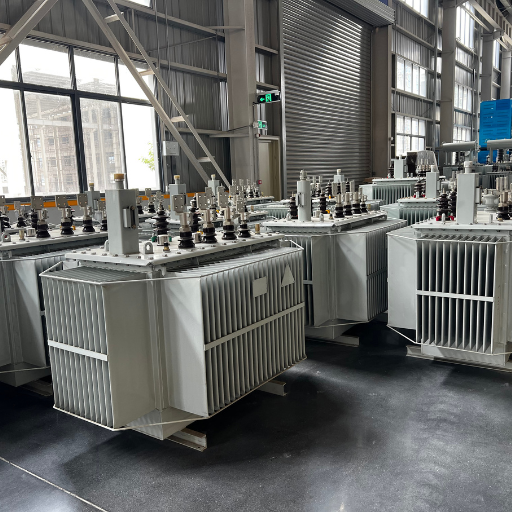

Mining & Oil & Gas
-
