Understanding the Role of Three Phase Pad Mount Transformers
Three Phase Pad Mount Transformers are ground-mounted units that step down voltage for industrial and commercial applications. Enclosed in tamper-proof, weatherproof cabinets, they safely distribute power in public or service areas without requiring a fenced enclosure. Essential for underground power distribution systems, they offer a reliable, aesthetic, and space-saving alternative to overhead lines, ensuring efficient energy delivery for shopping centers, schools, and industrial parks.
How Three Phase Pad Mount Transformers Work
Voltage Step-Down Process
High-voltage electricity enters the primary bushing of the transformer from the utility grid. The internal windings electromagnetically induce a lower voltage in the secondary windings, matching the specific requirements of the facility (e.g., 480V or 208V).
Core and Coil Induction
The transformer utilizes a magnetic core and copper or aluminum coils to transfer energy. This efficient induction process ensures that power is converted with minimal energy loss, maintaining voltage stability even under varying load conditions.
Insulation and Cooling
The internal components are immersed in a dielectric fluid (oil or biodegradable fluid). This fluid serves two purposes: it insulates the live parts to prevent arcing and circulates to cool the core and coils, preventing overheating during peak operation.
Technical Specifications of Three Phase Pad Mount Transformer
| Feature | Specification |
|---|---|
| kVA Rating | 45 kVA up to 10,000 kVA |
| Primary Voltage | Up to 34.5 kV (Delta or Wye) |
| Secondary Voltage | 208Y/120, 480Y/277, or custom |
| Frequency | 50 Hz or 60 Hz |
| Winding Material | Copper or Aluminum |
| Insulation Fluid | Mineral Oil or Biodegradable (FR3) |
| Standard Compliance | IEEE C57.12.00, ANSI, NEMA, DOE 2016 |
| Temperature Rise | 65°C Standard (55/65°C Optional) |
| Coating | Corrosion-resistant powder coat (Munsell Green) |
Key Features of Three Phase Pad Mount Transformers
High Energy Efficiency
Engineered with low-loss cores and windings to maximize energy transmission and significantly reduce long-term operational costs.
Compact Design
The low-profile, space-saving footprint is ideal for space-constrained environments like urban centers and industrial parks without sacrificing power.
Reliable Performance
Built to withstand harsh weather conditions and heavy loads, minimizing downtime and maintenance requirements for uninterrupted service.
Customizable Configuration
Fully tailored solutions to meet specific voltage, impedance, and load requirements, ensuring compatibility with your unique infrastructure.
Enhanced Safety Features
Features tamper-resistant cabinetry and dead-front construction to ensure the safety of maintenance personnel and the general public.
Environmentally Friendly
Designed with biodegradable fluids and eco-friendly materials to ensure minimal environmental impact during operation and disposal.
Applications of Three Phase Pad Mount Transformers

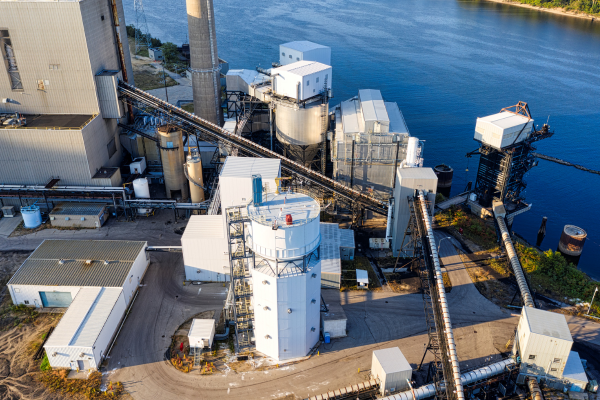

Industrial Manufacturing Facilities
Designed to support heavy machinery and continuous production lines. Their robust construction ensures they can handle the rigorous demands and variable loads typical of factories and processing plants without overheating or failure.
Renewable Energy Installations
A critical component for solar farms and wind energy projects. They step up voltage from inverters for grid transmission or step it down for local facility use, offering a durable solution for exposed, outdoor renewable energy sites.
Institutional and Educational Campuses
Perfect for universities, hospitals, and government facilities requiring secure, tamper-proof power solutions. The pad mount design ensures safety in high-traffic pedestrian areas while delivering consistent power to critical infrastructure.
What Our Customers Say
“The compact design of these transformers allowed us to maximize space in our new retail development. The installation was seamless, and the efficiency gains have already been noticeable on our utility reports.”
James T.
Project Manager
“Reliability is non-negotiable for our manufacturing plant. Since switching to these pad mount units, our downtime related to power distribution has dropped to near zero. The tamper-proof safety features also give us peace of mind.”
Sarah L.
Operations Director
Latest Insights
An indoor dry transformer is the safest, most code-compliant choice for bringing medium-voltage power into occupied buildings because it uses…
Dry type transformer maintenance includes regular visual inspections, scheduled electrical testing, proper cleaning, temperature monitoring, and systematic record keeping. Performed…
Dry type transformer installation requires proper foundation preparation, adequate clearances per IEC or NEC standards, correct lifting and handling, secure…
Transformer noise above 45 dB in patient care areas correlates with measurable increases in patient stress, longer recovery times, and…
Frequently Asked Questions (FAQs)
Pad mount transformers are installed on the ground, typically on concrete pads, making them easier to access for servicing and more visually appealing for underground power distribution systems. In contrast, pole mount transformers are attached to overhead utility poles, commonly used in areas with above-ground power lines.
Pad mount transformers are primarily designed for outdoor use due to their liquid cooling insulation. For indoor applications, dry-type transformers or fire-rated vaults are recommended for liquid-filled units to meet safety and building code requirements.
These transformers are engineered for minimal maintenance. Routine inspections include checking oil levels, pressure gauges, and ensuring the enclosure’s paint, seals, and locks remain in good condition to prevent wear and tampering.
With proper care and operation within rated load conditions, pad mount transformers typically have a lifespan of 20 to 30 years. In many cases, they can last even longer with consistent maintenance and favorable operating conditions.
Yes, they are. Many models are available with biodegradable, vegetable-based insulating fluids like FR3, which are non-toxic, environmentally safer, and have a higher flash point compared to traditional mineral oils.
Our pad mount transformers are manufactured to meet or exceed rigorous IEEE and ANSI safety standards. These include tamper-resistant designs, robust enclosures, and strict electrical operation protocols to ensure safety and reliability in all environments.
-
