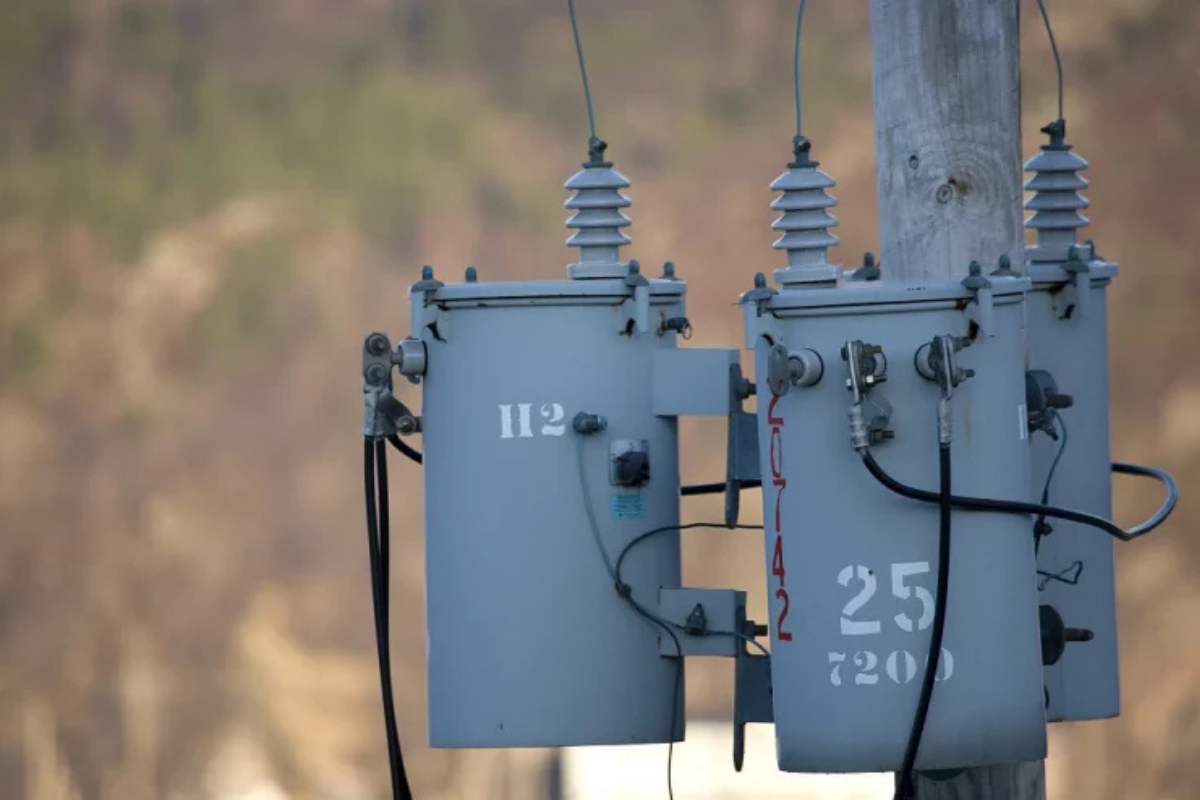

What is a Pole Distribution Transformer?
Pole distribution transformers are essential components of the modern power grid. These transformers are designed for overhead power distribution systems, making them ideal for urban, suburban, and rural areas. Their compact, space-saving design makes them the perfect solution for servicing both densely populated urban neighborhoods and widespread rural areas where ground space is limited or impractical for pad-mount units. Engineered for performance and longevity, our transformers ensure a stable power supply that communities and businesses can depend on.
Key Features of Our Pole Distribution Transformer
Space-Efficient Design
By mounting directly onto utility poles, these transformers free up valuable ground space. This is critical in urban centers, commercial districts, and residential areas where a minimal footprint is essential.
Built for All Environments
Constructed with sealed, weatherproof tanks and high-quality coatings, our pole-mounted units are built to withstand extreme weather, UV radiation, and corrosive elements, ensuring a long and reliable service life.
Optimized for Efficiency
Featuring low-loss core designs and high-quality windings, our transformers meet and exceed modern energy-efficiency standards. This reduces the total cost of ownership over the unit’s lifecycle.
Data Specification Table for Pole Distribution Transformer
| Specification | Details |
|---|---|
| Power Rating | 10 kVA up to 500 kVA (custom kVA on request) |
| Phase | Single-Phase or Three-Phase |
| Primary Voltage | 2.4 kV to 36 kV |
| Secondary Voltage | 120/240V, 240/480V, 120Y/208V, 277/480V (others on request) |
| Tapping Range | ±2 x 2.5%, ±2 x 5%, customized tap settings available |
| Frequency | 50Hz / 60Hz |
| Impedance | 4% to 10% (depending on rating and specifications) |
| Cooling Type | ONAN (Oil Natural Air Natural) |
| Insulating Fluid | Mineral Oil, Natural Ester (FR3), Silicone Fluid (on request) |
| Enclosure | Sealed tank with stainless steel, corrosion-resistant finishes |
| BIL Ratings | 60 kV to 150 kV |
| Temperature Rise | 55°C or 65°C |
| Fittings | ANSI standard bushings, optional wildlife guards, and loadbreak switches |
| Standards | ANSI/IEEE C57.12, DOE Efficiency, RUS, IEC 60076 compliant |
Why Choose Our Pole Distribution Transformer?
Proven Field Reliability
Trusted by utilities and industries around the world, our pole distribution transformers have a track record of high uptime in varied climates.
Comprehensive Customization
From voltage ratings and tap changers to insulating fluids and fittings, products are tailored for your project’s exact needs.
Stringent Quality Controls
Every transformer undergoes a rigorous multi-point quality inspection, dielectric testing, and load analysis before shipping.
Dedicated Lifecycle Support
Our technical support and engineering teams are available for consultation, troubleshooting, and on-site assistance.
Unmatched Value Over Time
Built for longevity, the robust hardware and superior design lower your maintenance costs and extend service life.
Sustainable & Safe Solutions
Eco-friendly fluid options like FR3 and advanced tank sealing promote both environmental safety and long-term reliability.
Industry Applications of Pole Distribution Transformer

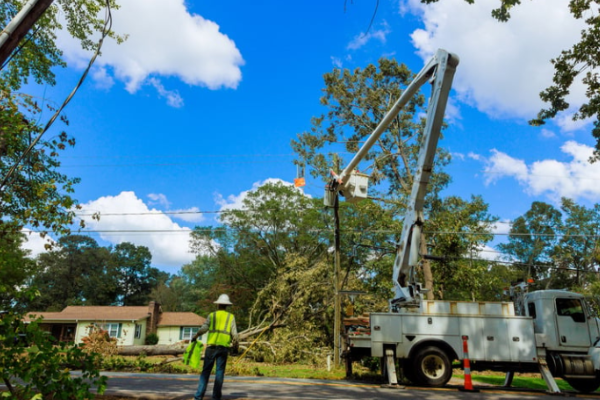

Utility Power Distribution
Pole distribution transformers are widely used in utility networks to step down high-voltage electricity from transmission lines to a lower voltage suitable for residential and commercial use. They are essential for providing reliable power to urban, suburban, and rural areas, ensuring consistent energy delivery to homes and businesses.
Rural Electrification
These transformers play a critical role in extending power grids to remote and rural areas. Their compact, pole-mounted design makes them ideal for areas where ground space is limited or where underground cabling is not feasible. They support agricultural operations, remote dwellings, and small rural communities with stable and efficient power.

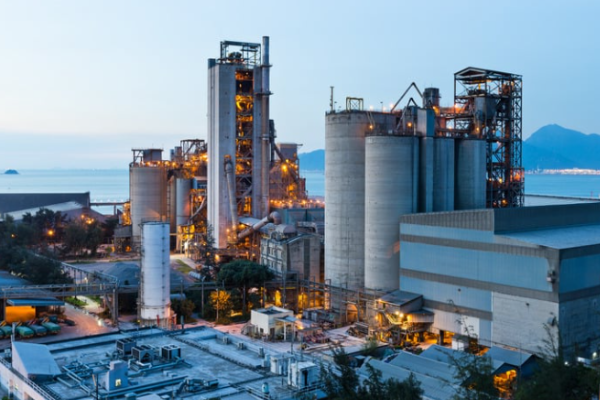

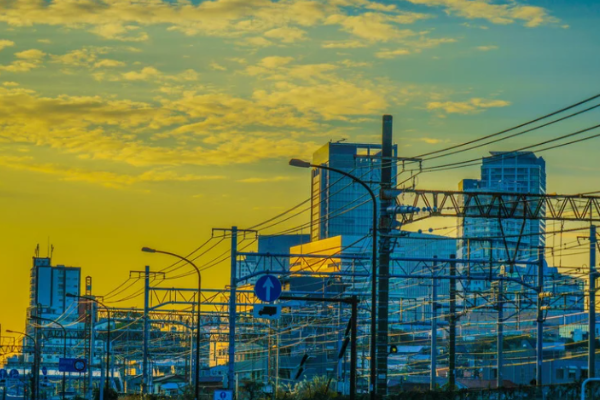

Commercial & Light Industrial
Pole-mounted transformers are used to power small to medium-sized commercial establishments and light industrial facilities. They provide the necessary voltage for equipment, lighting, and machinery, ensuring smooth operations in businesses like retail stores, workshops, and small manufacturing units.
What Our Clients Say
“The installation of the new pole distribution transformer went flawlessly. The unit’s compact design and verified performance were exactly what we needed to handle the load increase in our rural service area. We’ve seen stable voltage and zero issues since deployment. The quality truly speaks for itself, making maintenance planning far simpler.”
David Chen
Chief Utility Engineer
“We chose their pole-mount transformers for a major subdivision project because of their excellent efficiency ratings and robust enclosure build. The quick-connect features saved our crews significant time on the pole, dramatically speeding up deployment. It’s a reliable, heavy-duty product that maintains stability even during peak summer demand.”
Sarah Williams
Director of Field Operations
Latest Insights
An indoor dry transformer is the safest, most code-compliant choice for bringing medium-voltage power into occupied buildings because it uses…
Dry type transformer maintenance includes regular visual inspections, scheduled electrical testing, proper cleaning, temperature monitoring, and systematic record keeping. Performed…
Dry type transformer installation requires proper foundation preparation, adequate clearances per IEC or NEC standards, correct lifting and handling, secure…
Transformer noise above 45 dB in patient care areas correlates with measurable increases in patient stress, longer recovery times, and…
Frequently Asked Questions (FAQs)
A Pole Distribution Transformer is a transformer specifically designed to be mounted on a utility pole. Its primary function is to step down high-voltage electricity from overhead power lines to a lower, usable voltage for homes, small businesses, and rural properties. It ensures that the power entering your building is safe and compatible with standard appliances.
These transformers are built for durability. With proper maintenance and normal operating conditions, a high-quality Pole Distribution Transformer can last between 25 to 40 years. Their longevity depends on factors like local weather conditions, load levels, and the quality of the manufacturing materials.
While designed to be low-maintenance, regular inspections are important. Maintenance typically involves visual checks for oil leaks, corrosion on the tank, or damage to the bushings. Utility crews also monitor load levels to ensure the transformer isn’t being overworked, which helps extend the unit’s lifespan.
Yes, they are very safe. A Pole Distribution Transformer is installed high above the ground, making it inaccessible to the public. Modern units also come equipped with safety features like pressure relief valves and lightning arresters to prevent damage during storms or electrical surges.

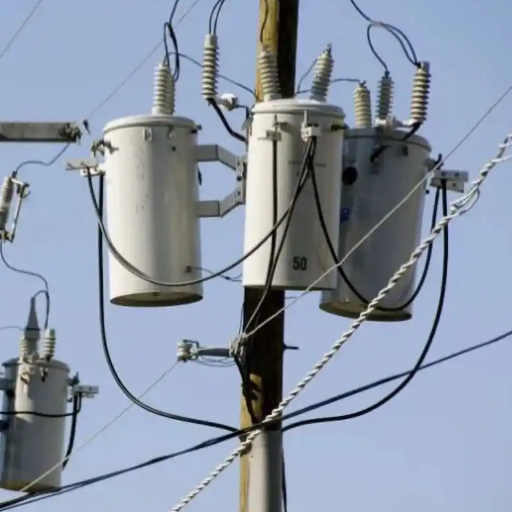

Yes. While many pole-mounted units are single-phase (common for residential use), they can be configured for three-phase power. This is often achieved by banking three single-phase transformers together on a pole cluster to serve light industrial or commercial loads that require higher power capacity.
Selecting the right unit involves calculating your total load requirements (kVA rating), knowing the primary and secondary voltage needs, and understanding local utility standards. We recommend consulting with an electrical engineer to ensure the Pole Distribution Transformer you choose is perfectly matched to your specific application requirements.
-
Special Transformers
-
Compact Substation
-
Grounding Transformers
-

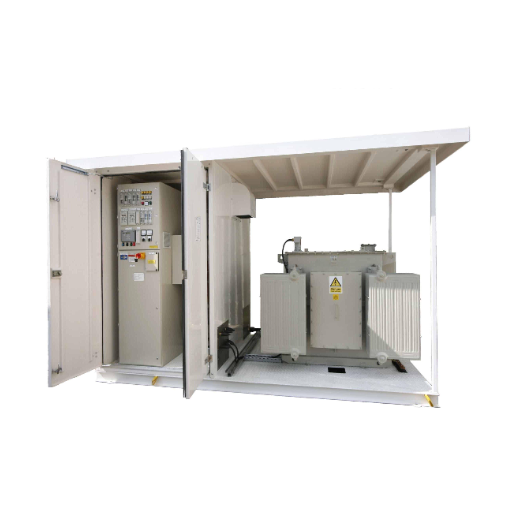

Substation Container
